Search found 11 matches

by oceax
Sun Nov 04, 2012 4:06 pm
Forum: Mini Spindles - Purchased
Topic: 300 watt DC ER11 spindle.
Replies: 43
Views: 20453

Re: 300 watt DC ER11 spindle.

1. I don't have any other er11 collets to try with. The construction at first looked to be of the same type as my 2.2kw er20 spindle. A simple clamping nut and a collet inside. However i was not able to push out the current collet out of the nut :? I only use it with 1/8" shank tools. 2. Well, It's ...
by oceax
Thu Nov 01, 2012 3:55 pm
Forum: Mini Spindles - Purchased
Topic: 300 watt DC ER11 spindle.
Replies: 43
Views: 20453

Re: 300 watt DC ER11 spindle.

I just used the standard mounts that came with shapeoko to press the spindle in place. But i will create an adapter plate to mount it directly on makerslide, easy to fix. Mount that came with spindle has 4 screws -> adapter plate, 4 screws -> makerslide I bought 24V 15A 350W power supply on ebay. It...
by oceax
Wed Oct 31, 2012 11:22 pm
Forum: Mini Spindles - Purchased
Topic: 300 watt DC ER11 spindle.
Replies: 43
Views: 20453

Re: 300 watt DC ER11 spindle.

I have it and it works great so far with milling pcb and mdf wood. Much better than the dremel i used before. No problems with run out, i get very good traces on pcb.
by oceax
Sun Sep 09, 2012 11:08 pm
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

Re: My shapeoko 3d printer

I don't think vibration and resonance will be a problem from my experience with the machine so far. Not sure, but i will give it a try. I am currently doing some upgrades that will make it more stable. I will have two timing belts for y-axis, one on each side. But only one motor so there will be a s...
by oceax
Thu Aug 16, 2012 11:56 pm
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

Re: My shapeoko 3d printer

I have not tried to make the printrboard mill yet for the reason in atomsofts link and i have a grblShield with 2.5A drivers (printrboard is 2A) But replacing the software on the printrboard takes 30sec so switching between grbl and marlin that way is not too painfull. And i will change my shapeoko ...
by oceax
Thu Jul 05, 2012 3:18 am
Forum: Design Ideas
Topic: New X-axis plates
Replies: 112
Views: 140463

Re: New X-axis plates

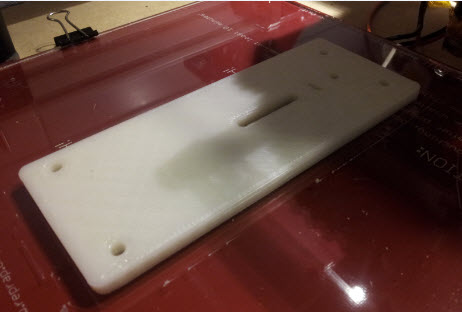

Created STL and printed the mount plate with my shapeoko
xmount_v2_STL.rar
xmount STL
(9.27 KiB) Downloaded 597 times
by oceax
Wed Jul 04, 2012 11:18 pm
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

Re: My shapeoko 3d printer

After more calibration i have much better prints Mounting plate for 30mm fan blowing on hotend heatsink and object being printed https://nicke-eu.s3.amazonaws.com/07051.jpg Propeller + cover for engine https://nicke-eu.s3.amazonaws.com/07053.jpg Very nice density https://nicke-eu.s3.amazonaws.com/07...
by oceax
Tue Jul 03, 2012 12:01 am
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

Re: My shapeoko 3d printer

I am new to 3d printing so this is not necessarily the best stuff. Printrboard Electronics Rev C - http://www.makerfarm.com/catalog/i12.html - Compact, very easy to use but has only support for 1 extruder. I will probably buy some other electronics like ramps in the future because of this. There is ...
by oceax
Mon Jul 02, 2012 11:00 pm
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

Re: My shapeoko 3d printer

I have bought two, one from ebay (USA) user: jbgeisl and one from http://www.2printbeta.de The extruder i got from jbgeisl was top quality. https://s3-eu-west-1.amazonaws.com/nicke-eu/mario_print.jpg Printing new mounting stuff for dremel https://s3-eu-west-1.amazonaws.com/nicke-eu/dremel1.jpg Now i...
by oceax
Fri Jun 29, 2012 12:59 am
Forum: 3D Printing
Topic: My shapeoko 3d printer
Replies: 16
Views: 12234

My shapeoko 3d printer

My setup Controller: Printrbot Extruder: Greg's wade reloaded Hotend: J-Head Mk IV-B - Orifice: 0.50 mm (default) - Filament Size: 3mm Heatbed: PCB Mk2 heatbed Software: Pronterface Did my first print without calibrating, video dosn't show much, but everything worked great except z-axis needs some a...
