My homebrew cyclone seperator...

Post by bharbour » Tue Jan 20, 2015 2:59 pm

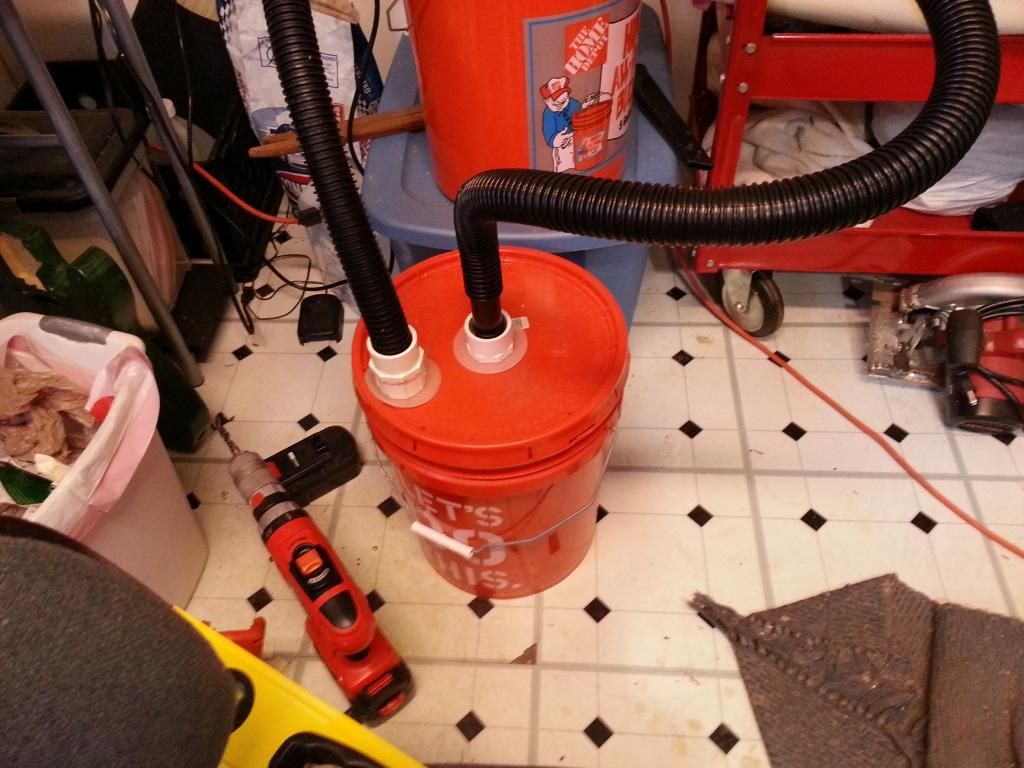

Used some 1 1/4" plumbing parts from Home Depot. The Home Depot Bucket Head shopvac is connected to the middle piece and the suction to the SO2 is on the outer piece (which is a 90 degree elbow inside the bucket). It works like a champ. I sucked up all kinds of dirt, wood shavings, leaves, etc., and nothing got to the shop vac that I could see.

No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

akhlut
Posts: 304
Joined: Wed Mar 27, 2013 1:16 am

Re: My homebrew cyclone seperator...

Post by akhlut » Tue Jan 20, 2015 3:37 pm

I really need to do this.

Georgei
Posts: 148
Joined: Mon Dec 22, 2014 11:22 pm
Location: UK

Re: My homebrew cyclone seperator...

Post by Georgei » Tue Jan 20, 2015 3:56 pm

I have a similar separator but I also made a flange to improve the cyclone effect.
The design is based in Phil Thien's design ( http://www.jpthien.com/cy.htm) and works like a dream.
6 months now and I didn't had to clean the vac filter.

George

Damin69
Posts: 331
Joined: Fri Oct 31, 2014 3:00 pm
Location: Muscoda, WI

Re: My homebrew cyclone seperator...

Post by Damin69 » Tue Jan 20, 2015 4:06 pm

This is the one We built Called the 2 bucket Cyclone http://woodgears.ca/dust_collector/cyclone.html
Love it. Using a shop vac. and instead of snap on bucket lid found this lidhttp://www.menards.com/main/housewares/ ... c-7112.htm at local Menards works great.
Shapeoko 2 #6971
Upgrades
Makita 0701, Nema23s, ACME Z Axis, Nema 23 Belt drive
Expanded to 1000 x 1800
Electronics upgrade C-10 BOB, SainSmart ST-M5045 drivers, Mach3
Damin69's Build Log

bharbour
Posts: 413
Joined: Wed Aug 06, 2014 3:40 pm
Location: Mobile, AL
Contact:

Re: My homebrew cyclone seperator...

Post by bharbour » Tue Jan 20, 2015 4:14 pm

Yea...I had looked at your flange. I plan on adding it to my seperator if I can figure out how to do it! Great design George!!!
Georgei wrote:I have a similar separator but I also made a flange to improve the cyclone effect.
The design is based in Phil Thien's design ( http://www.jpthien.com/cy.htm) and works like a dream.
6 months now and I didn't had to clean the vac filter.

George
No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

bharbour
Posts: 413
Joined: Wed Aug 06, 2014 3:40 pm
Location: Mobile, AL
Contact:

Re: My homebrew cyclone seperator...

Post by bharbour » Tue Jan 20, 2015 4:15 pm

Wow...that's not a bad price for that air tight lid!!! Thanks!!
Damin69 wrote:This is the one We built Called the 2 bucket Cyclone http://woodgears.ca/dust_collector/cyclone.html
Love it. Using a shop vac. and instead of snap on bucket lid found this lidhttp://www.menards.com/main/housewares/ ... c-7112.htm at local Menards works great.
No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

clockit
Posts: 319
Joined: Sun Nov 16, 2014 11:05 pm
Location: California, MO

Re: My homebrew cyclone seperator...

Post by clockit » Tue Jan 20, 2015 8:43 pm

How far away can your shop vac be from the collection pail? I so hate cleaning my filter... And I've figured out why Shop Vacs sell so cheap, replacement filters can cost up to a 1/3 of the vac!
Shapeoko 2, Full Kit #7071, Makita RT0701C Router, 1000 x 1000 upgrade, Acme Z Axis w/Nema 17 Belt Drive

Damin69
Posts: 331
Joined: Fri Oct 31, 2014 3:00 pm
Location: Muscoda, WI

Re: My homebrew cyclone seperator...

Post by Damin69 » Tue Jan 20, 2015 8:48 pm

clockit wrote:How far away can your shop vac be from the collection pail? I so hate cleaning my filter... And I've figured out why Shop Vacs sell so cheap, replacement filters can cost up to a 1/3 of the vac!
My longest run is 20' of pipe with about 15 foot of hose does a good job. Most of the time I am hooked up where I have about 10 feet of hose and about a 10 foot run of pipe from my blast gate.
Guess I should have stated my Garage is roughly 24x24. I only use one port at at time. I have Radial arm saw, Miter Saw and one open port on one run along one wall. Then I have a port that runs overhead to where my Tablesaw and CNC are set up. I only use one port at a time with this set up. I would need to go bigger than shop vac if I went more than one port at a time.
Shapeoko 2 #6971
Upgrades
Makita 0701, Nema23s, ACME Z Axis, Nema 23 Belt drive
Expanded to 1000 x 1800
Electronics upgrade C-10 BOB, SainSmart ST-M5045 drivers, Mach3
Damin69's Build Log

clockit
Posts: 319
Joined: Sun Nov 16, 2014 11:05 pm
Location: California, MO

Re: My homebrew cyclone seperator...

Post by clockit » Tue Jan 20, 2015 11:49 pm

I should be good then, I'm in the process of remodling Shop I, thats where I keep my special toys, CNC, scroll saw, drill press, and bench sander, I plan on putting my shop vac in a closet with that area. I'm trying to reduce as much noise as possible. I have roughtly 260 sq feet, 13 x 20, in Shop I and I plan to plumb it in a similar manner. Shop II is detached from the house,24 x 24, that's where I keep the table saw, router table, and all other types of tools and currently have no dust collection process.
Shapeoko 2, Full Kit #7071, Makita RT0701C Router, 1000 x 1000 upgrade, Acme Z Axis w/Nema 17 Belt Drive

Damin69
Posts: 331
Joined: Fri Oct 31, 2014 3:00 pm
Location: Muscoda, WI

Re: My homebrew cyclone seperator...

Post by Damin69 » Wed Jan 21, 2015 2:48 am

This is what we got to use for Piping in our dust collection with the small shop. http://www.leevalley.com/US/wood/page.a ... 2604,62594 Though the blast gates SUCK but were easy to modify.
You can see in this picture they tend to collect saw dust which keeps them from going shut.
My 3/16" HDPE gate modification works great shown here
