Well...moving away from the Shapeoko 2...

Post by bharbour » Wed Apr 13, 2016 3:37 pm

I'm building my own MDF machine with NEMA23's and SBR16 supported linear rail. I just couldn't see how I could fix the lack of rigidity in the SO2 design. I upgraded my SO2 to 1mX1m but that was a mistake. I should have spent the money on the new design. It's such a sexy machine though and a shame I have to abandon it.

I'm going to keep the GRBL based Arduino Uno controller for my new build though. I like that setup...simple and USB connected. I will have my SO2 up for sale soon at a greatly discounted price.
No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

WillAdams
Posts: 8542
Joined: Mon Apr 09, 2012 6:11 pm
Location: Pennsylvania --- south of the Turnpike, East of US-15
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by WillAdams » Wed Apr 13, 2016 3:43 pm

Yeah, the SO2 at its original / stock size is great machine (and downright cute). Upgrading along the Y-axis isn't too bad (that's what I did w/ my SO1), w/ the ability to add side supports, but going beyond 500mm (w/ the rails doubled up and joined together) is likely the limit of Makerslide for an unsupported span for any but the lightest usage.
Shapeoko 3XL #0006 w/ Carbide Compact Router w/0.125″ and ¼″ Carbide 3D precision collets
Nomad 883 Pro #596 (bamboo)

bharbour
Posts: 413
Joined: Wed Aug 06, 2014 3:40 pm
Location: Mobile, AL
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by bharbour » Wed Apr 13, 2016 6:23 pm

Yes...and I'd have my doubts about the X-Carve too.
WillAdams wrote:Yeah, the SO2 at its original / stock size is great machine (and downright cute). Upgrading along the Y-axis isn't too bad (that's what I did w/ my SO1), w/ the ability to add side supports, but going beyond 500mm (w/ the rails doubled up and joined together) is likely the limit of Makerslide for an unsupported span for any but the lightest usage.
No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

WillAdams
Posts: 8542
Joined: Mon Apr 09, 2012 6:11 pm
Location: Pennsylvania --- south of the Turnpike, East of US-15
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by WillAdams » Wed Apr 13, 2016 7:44 pm

Yeah, it's been kind of sad watching the folks on the Inventables forums work through the need to fasten the double Makerslide for the X-axis together. Still really surprised that they didn't work up a way to do that, and that they chose to offer the 1M x 1M machine, rather than capping the size at only upgrading the Y-axis.
Shapeoko 3XL #0006 w/ Carbide Compact Router w/0.125″ and ¼″ Carbide 3D precision collets
Nomad 883 Pro #596 (bamboo)

Gadgetman!
Posts: 1061
Joined: Sun Aug 25, 2013 12:44 pm
Location: Norway
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by Gadgetman! » Thu Apr 14, 2016 6:46 am

But... Not fastening the makerslides together?
That's a necessity even on 500mm X-axis.

I expect that if you replaced the motor plates and addes another makerslide higher up, then extended the carriage to take advantage of it, it should stiffen up considerably.
Weird guy...
Shapeoko 2014F: 1000mm X/Y, 300W Quiet Cut spindle, Arduino Uno/G-shield and GRBL 0.9i
15x30 drag chains, custom spindle mount, 9mm belts, 8mm endplates, 6mm motor plates.

Auarhau
Posts: 243
Joined: Tue Feb 25, 2014 8:46 pm

Re: Well...moving away from the Shapeoko 2...

Post by Auarhau » Thu Apr 14, 2016 8:56 am

I have been thinking of this too. But using furniture grade birch ply. It would be interesting to see your design, and hear how it's working out for you.
Good luck
ShapeOko 2. Nema 17 74 oz·in. GAUPS shield on Arduino Uno. DRV8825 Drivers x4 . Kress 1050 FME-1. Z Acme Screw. Threaded inserts table.

xfredericox
Posts: 292
Joined: Mon May 04, 2015 10:46 am

Re: Well...moving away from the Shapeoko 2...

Post by xfredericox » Thu Apr 14, 2016 10:36 am

I'm still happy with my 1000x1000 SO2 with no rogidity mods whatsoever

but then I don't usually require high precision in my projects

But I must admin when I see professional machines cut through material like butter on high speeds, i am jealous.
Visit my blog for updates on my current SO2/lasercutting/... projects.
http://www.manmademayhem.com

bharbour
Posts: 413
Joined: Wed Aug 06, 2014 3:40 pm
Location: Mobile, AL
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by bharbour » Mon Apr 25, 2016 1:08 pm

Just wanted to show a few pics of the new build...

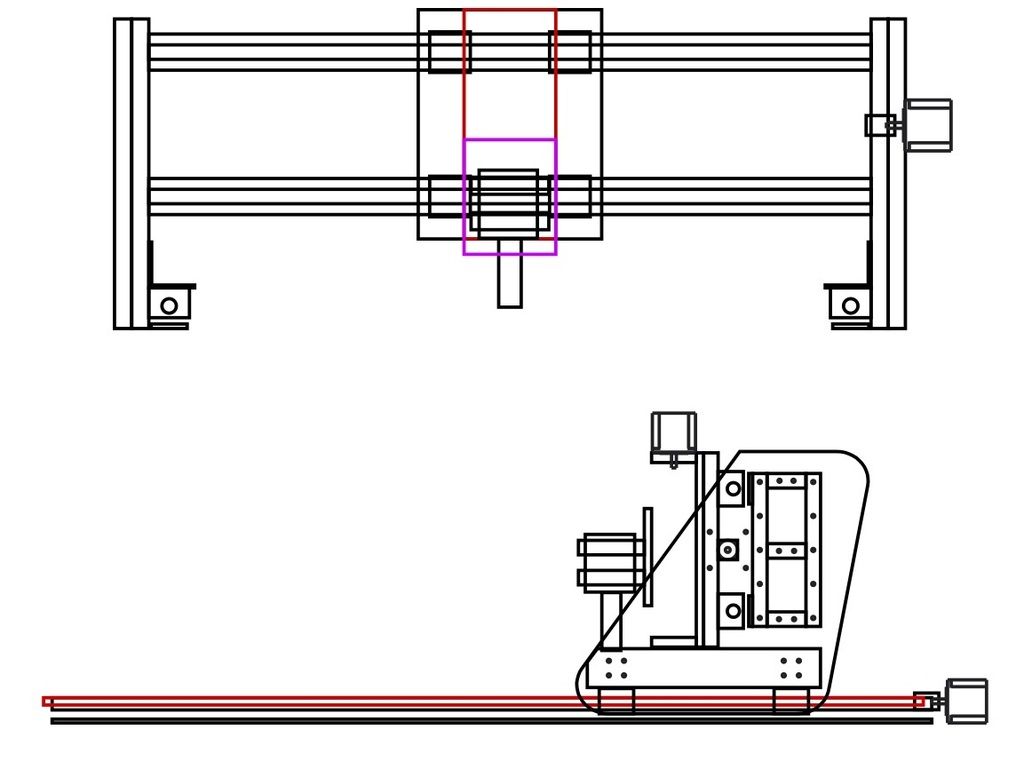

...an overview of the machine...

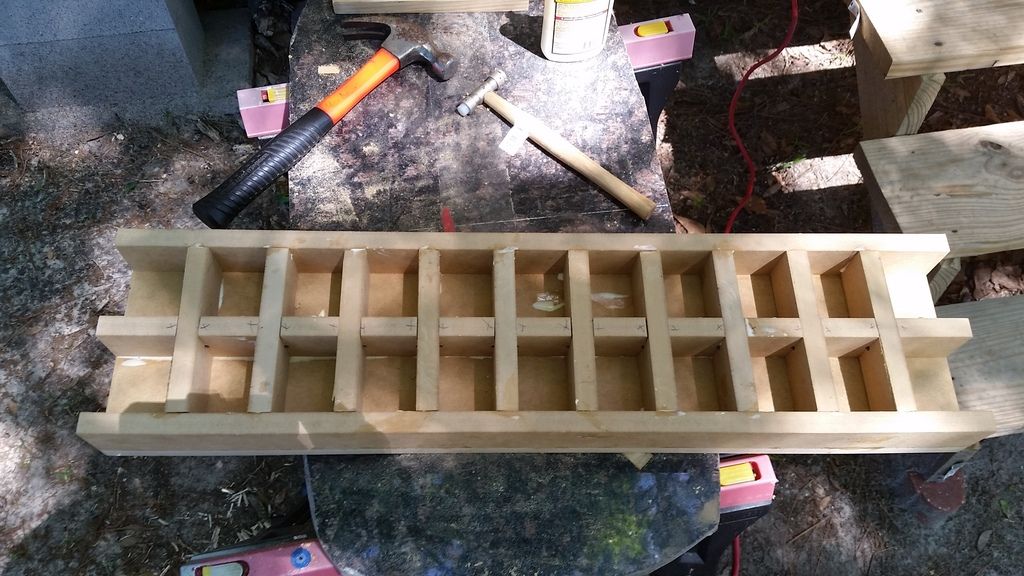

...torsion box construction...

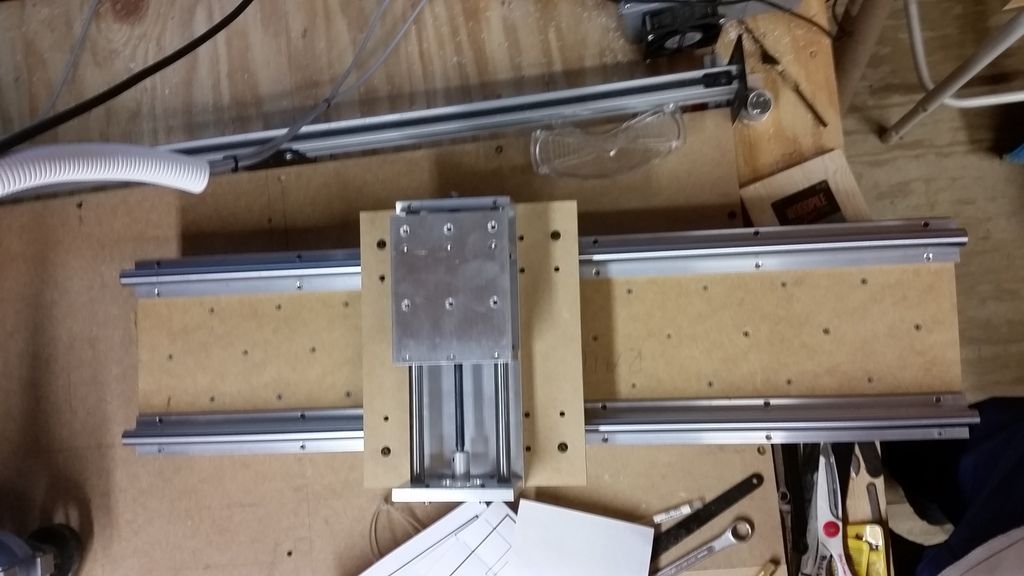

...mockup of Z axis...

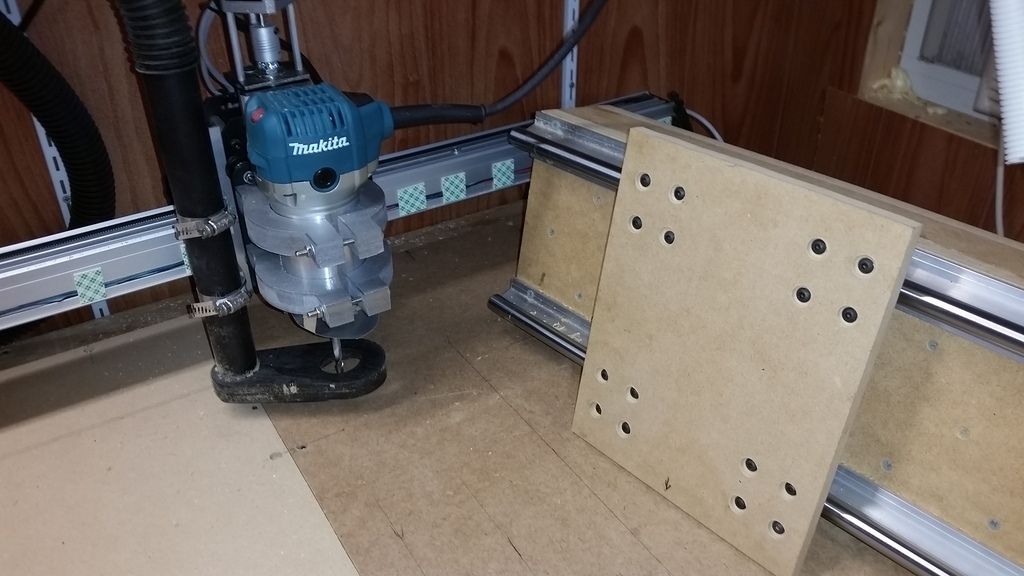

...comparison of new gantry beam with SO2 extrusions...
No longer have a Shapeoko, but use a machine of my own design...
https://www.youtube.com/watch?v=gFY4gC9TqD0
http://deltaguitarworks.tumblr.com

DRobs86
Posts: 148
Joined: Fri Jun 05, 2015 4:19 am

Re: Well...moving away from the Shapeoko 2...

Post by DRobs86 » Tue Apr 26, 2016 5:25 am

Keep us posted! I like to build custom machines so it is fun for me to see others walk through the (often very long) process.

Any more pics of the xy interconnection. I am on my phone, but I couldnt twll much about it specifically.

bharbour
Posts: 413
Joined: Wed Aug 06, 2014 3:40 pm
Location: Mobile, AL
Contact:

Re: Well...moving away from the Shapeoko 2...

Post by bharbour » Tue Apr 26, 2016 1:12 pm

No...I'll likely build a iron frame, then mount the long Y axis rails. I'll then design the motor mounts for that.
DRobs86 wrote:Keep us posted! I like to build custom machines so it is fun for me to see others walk through the (often very long) process.

Any more pics of the xy interconnection. I am on my phone, but I couldnt twll much about it specifically.
