Mid Span Supports

[bharbour]

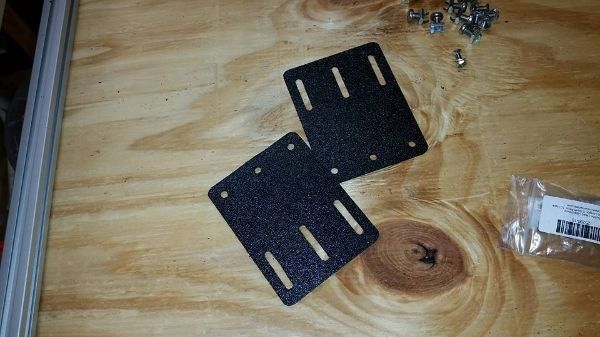

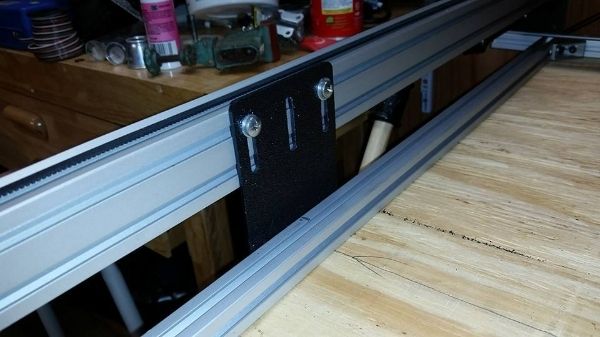

I recently upgraded my stock SO2 to 1000mmX1000mm and I made myself a couple of X axis mid-span supports out of ABS plastic sheet. I am surprised at how much rigidity the ABS supports provide. I intended to have three bolts per rail instead of the two, but I ran out of post assembly insertion nuts.





I can provide the Inkscape file if anyone is interested. I actually took the end plate drawing and modified it into the mid span support.

[ajacocks]

bharbour,

I'd like to see the Inkscape files. I'm in the process of upgrading my S2 to a 1000mm^2 X-carve, and I'd like to add a set of mid-span supports, while I'm building it.

Thanks,
Alex


Sent from my iPad using Tapatalk

[bharbour]

Will get those to you tonight.

bharbour,

I'd like to see the Inkscape files. I'm in the process of upgrading my S2 to a 1000mm^2 X-carve, and I'd like to add a set of mid-span supports, while I'm building it.

Thanks,
Alex


Sent from my iPad using Tapatalk

[WanderingFool]

I'm interested in the inkscape files too!

Thanks,

Doug

[matthewtmead]

I'm about to upgrade to 1000mmx1800mm on my Shapeoko2 and would love to get the inkscape files too. thanks!

[bharbour]

PM me your email and I'll send to you...tnx,

I'm about to upgrade to 1000mmx1800mm on my Shapeoko2 and would love to get the inkscape files too. thanks!

[trevor]

Do you still have those files for the midspan support. I would love to make a a set for my shapeoko. Thanks!
